Scenes from Day 3 of the “UC Baseline” cybersecurity program at The Undercroft

Wednesday: Day 3 continued the heavy hands-on portion of Hardware 101, the first segment of my five weeks at UC Baseline, the cybersecurity training program offered by Tampa Bay’s security guild, The Undercroft.

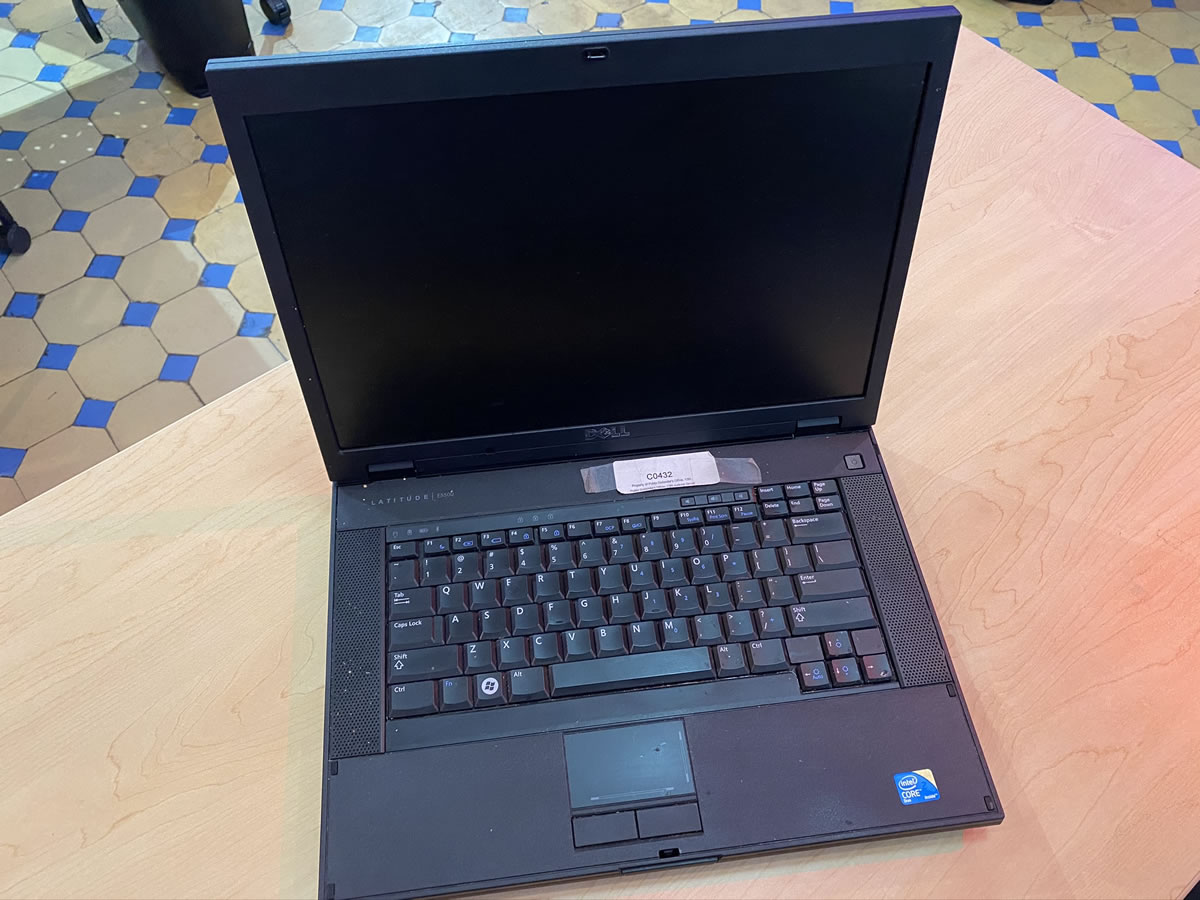

After taking apart and reassembling a desktop, it was time to up the ante and do the same with at least one laptop. I started with a Dell Latitude E5500, a bulky beast by today’s laptop standards, but one that’s more user-serviceable — and more easily taken apart — than most.

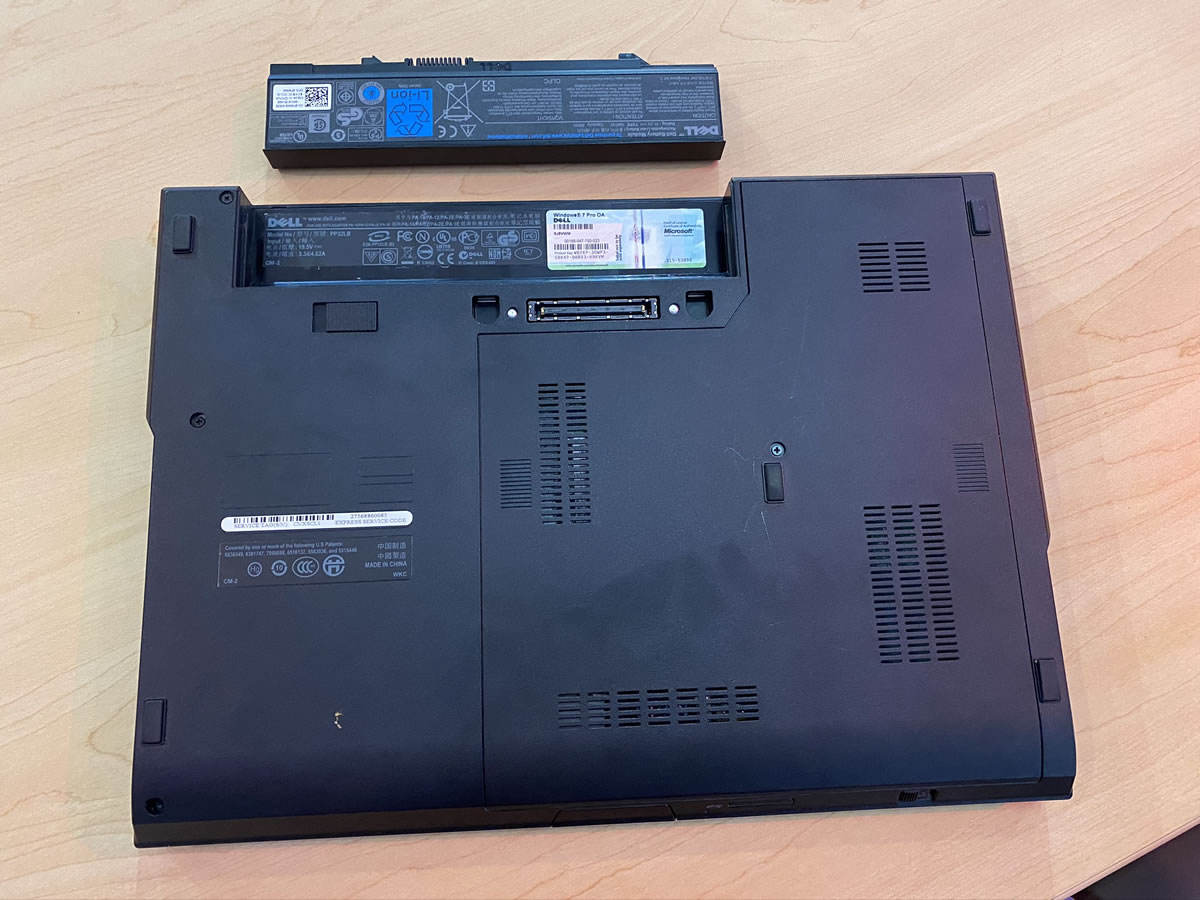

First step: Removing the battery.

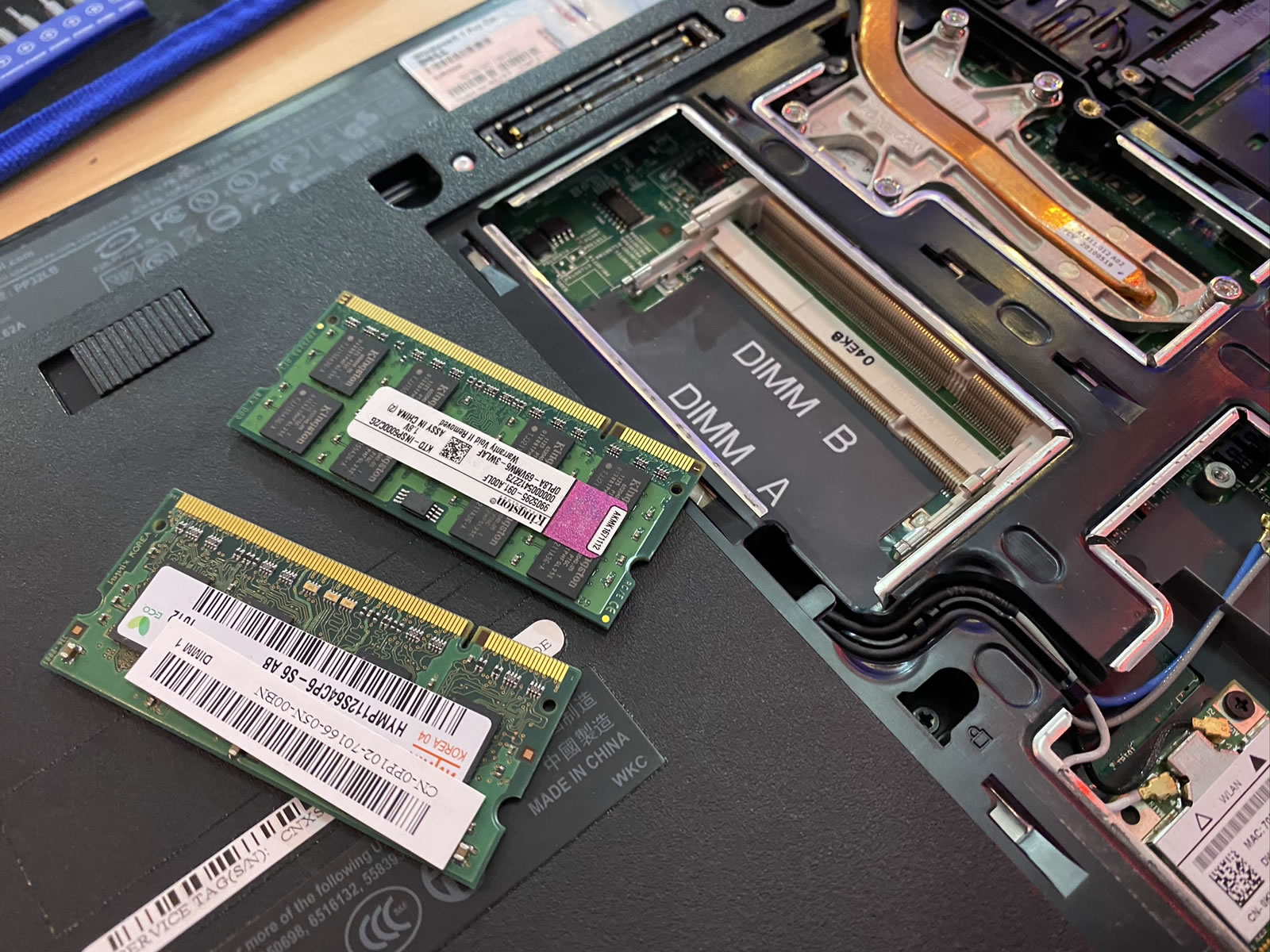

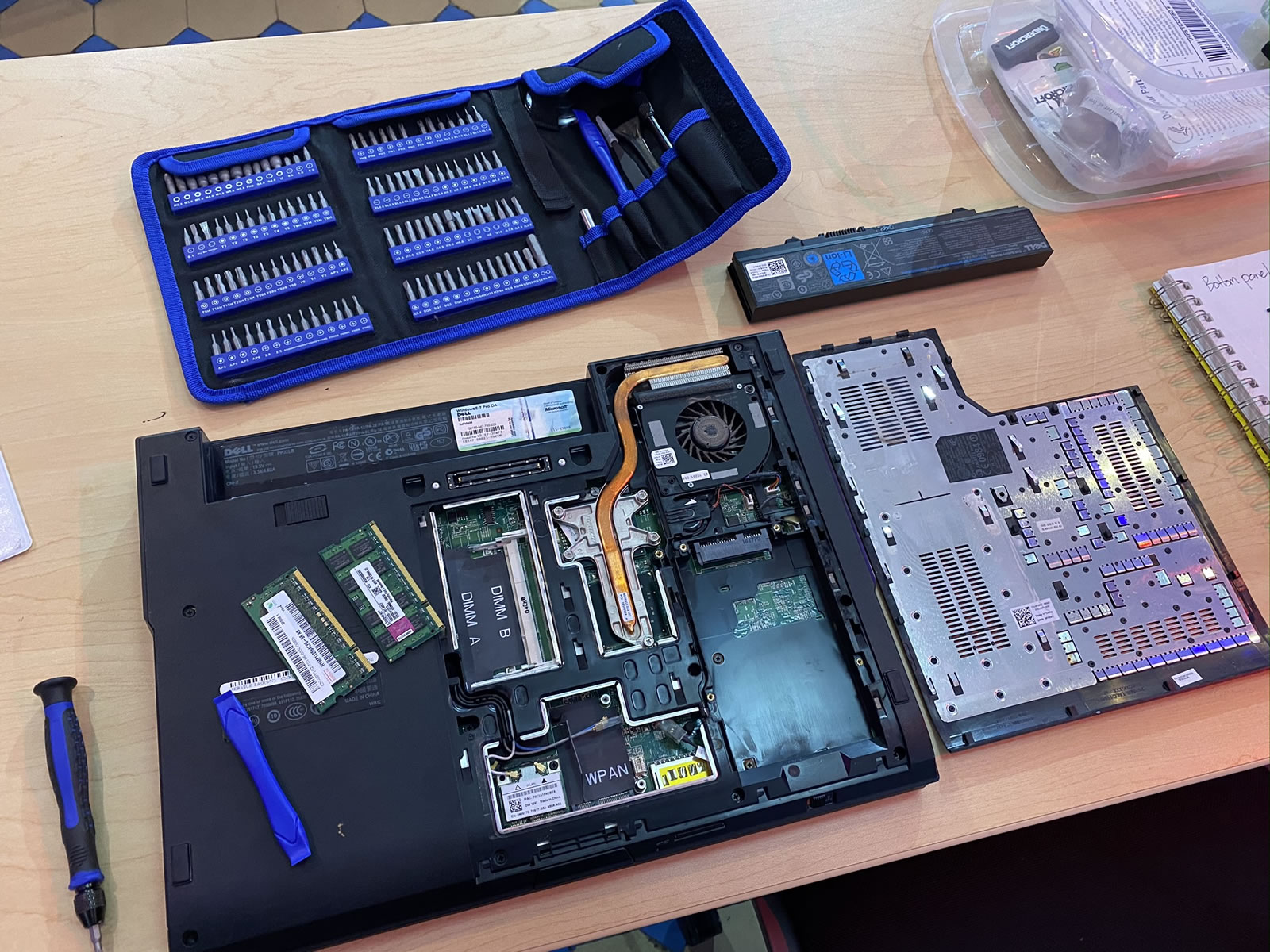

The bottom panel was easy to pop open. It was held in place by nothing fancier than standard Phillips screws, which provided easy access to the RAM.

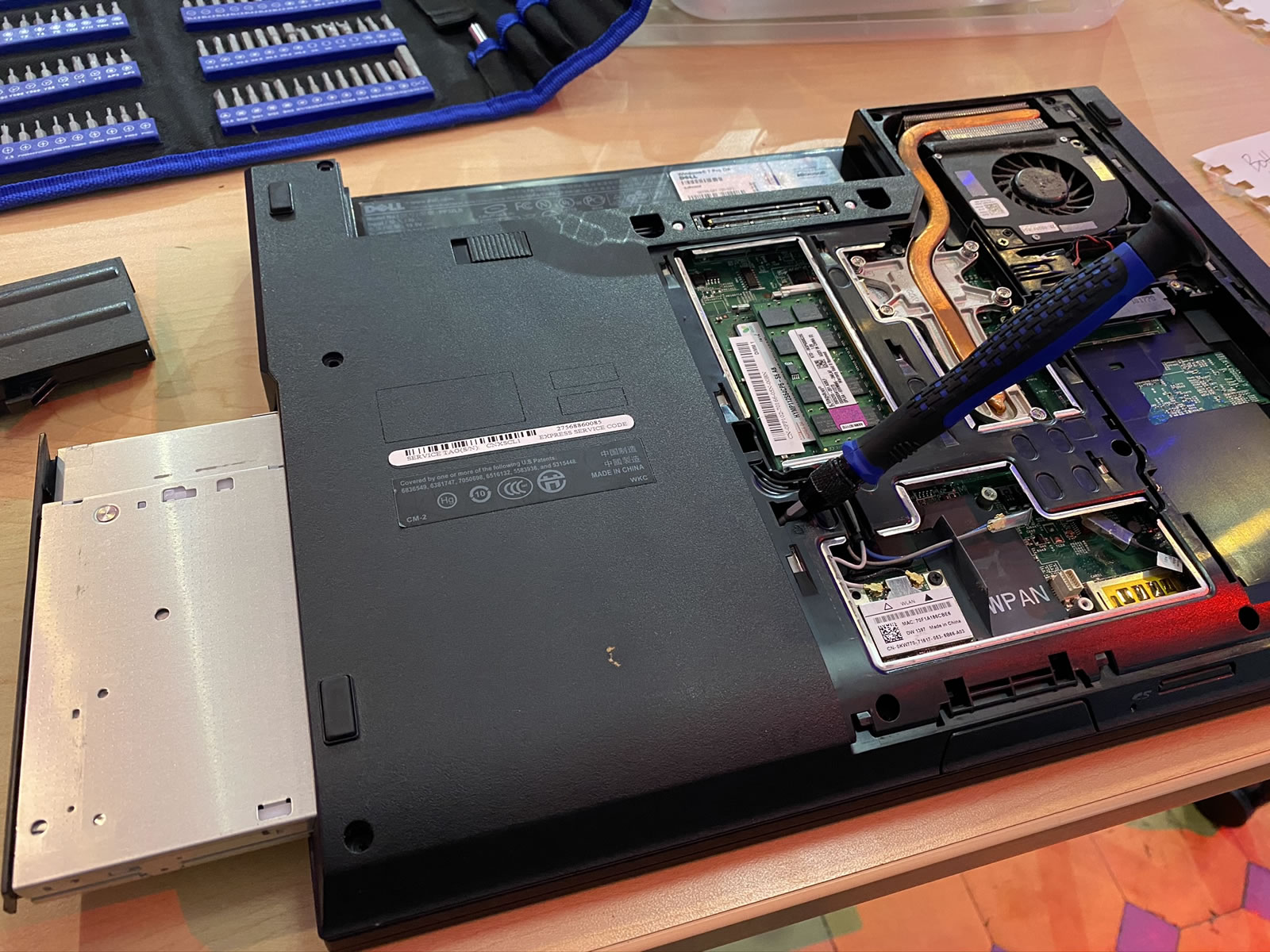

Next on the removal list: The optical drive. Once again, pretty straightforward — remove some anchoring screws, and then use a flathead screwdriver tip to push the the drive casing out.

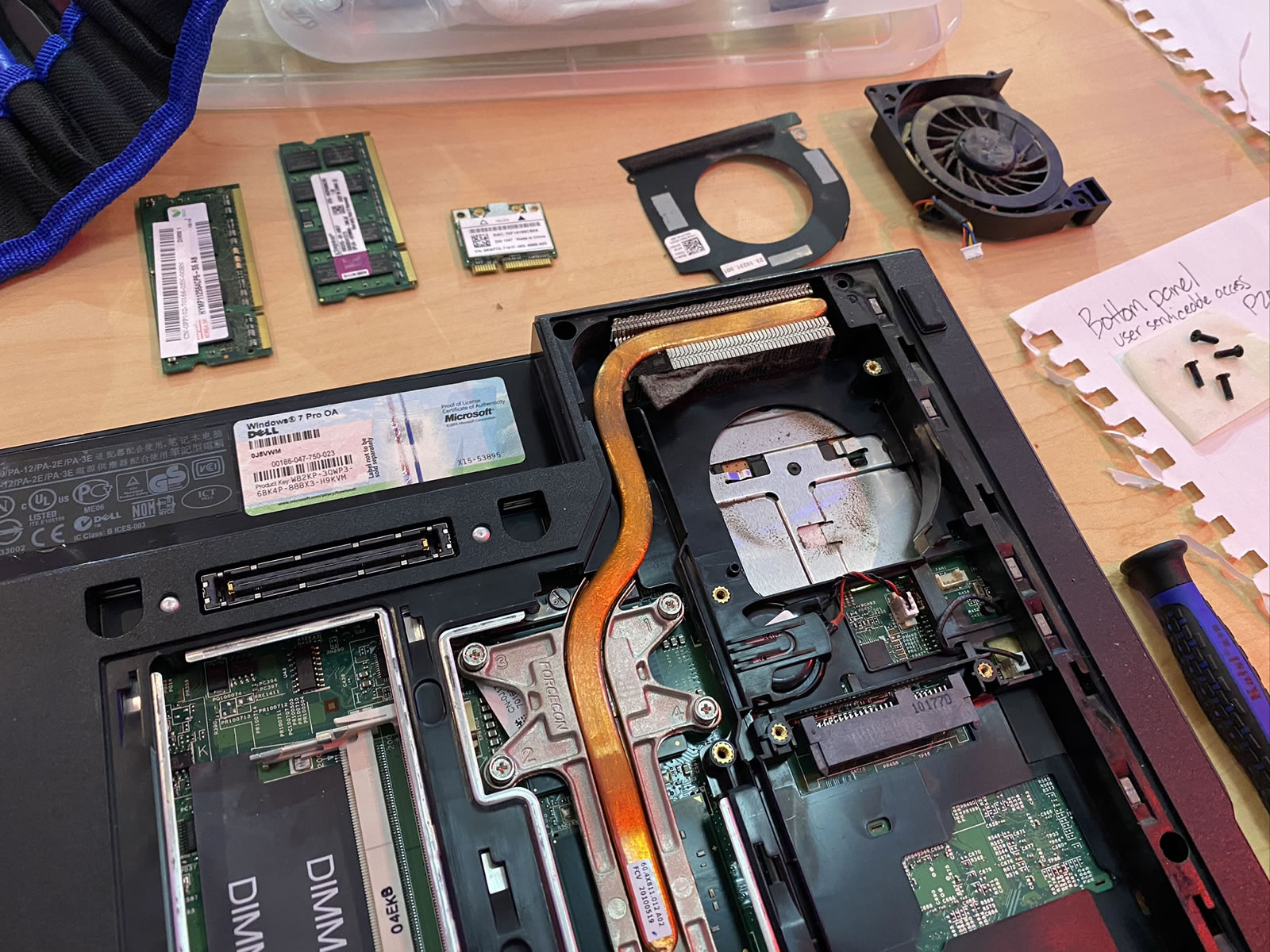

The fan was quite easy to remove, as was the CPU heat sink.

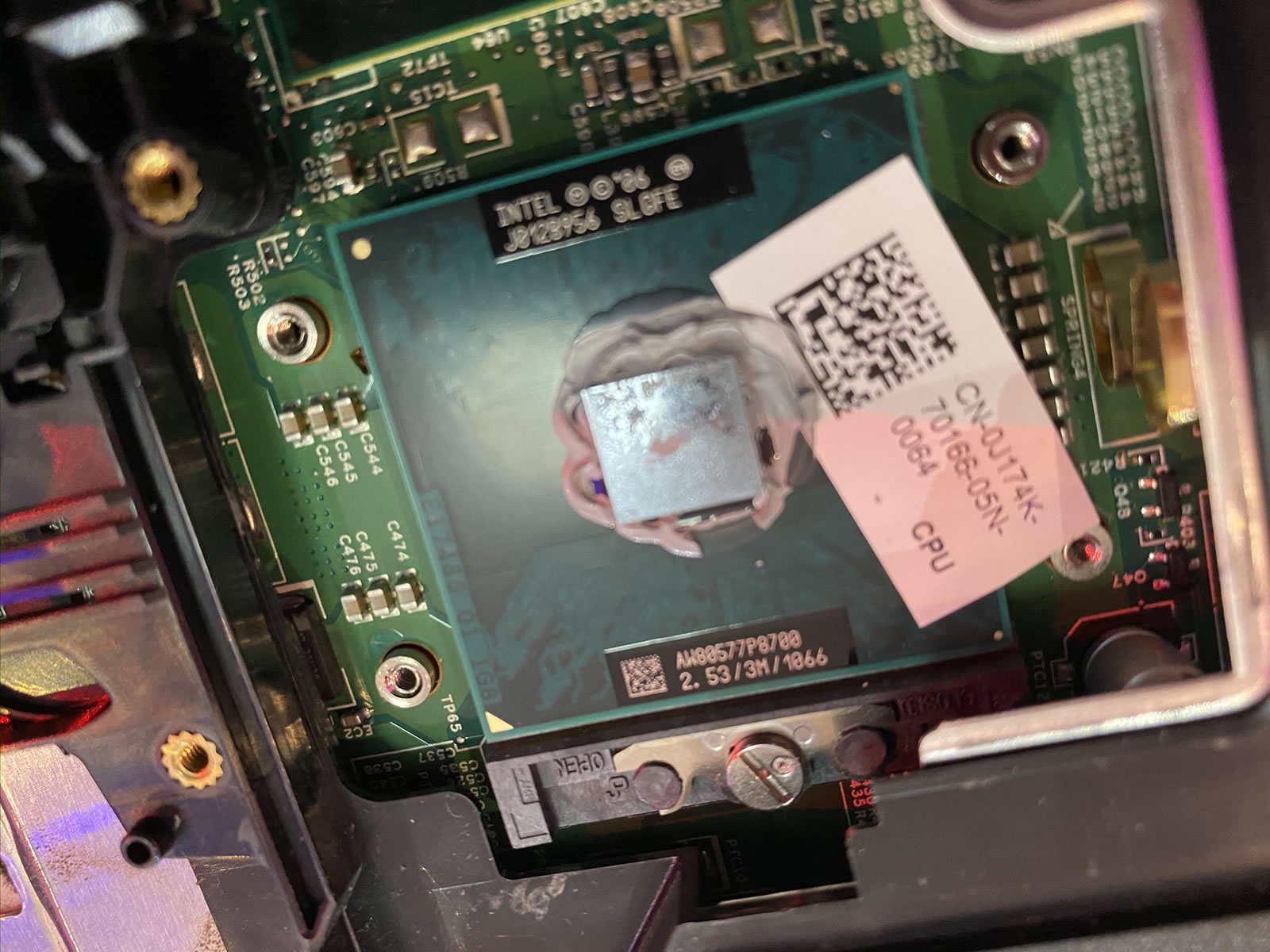

Unlike the previous day’s desktop machines’ CPUs, which were in ZIF (zero insertion force) slots, laptop CPUs aren’t typically swappable, as they’re generally soldered onto the motherboard. This machine had a notebook-grade Core 2 Duo, which was typical for a mid-level laptop in the Windows 7 era.

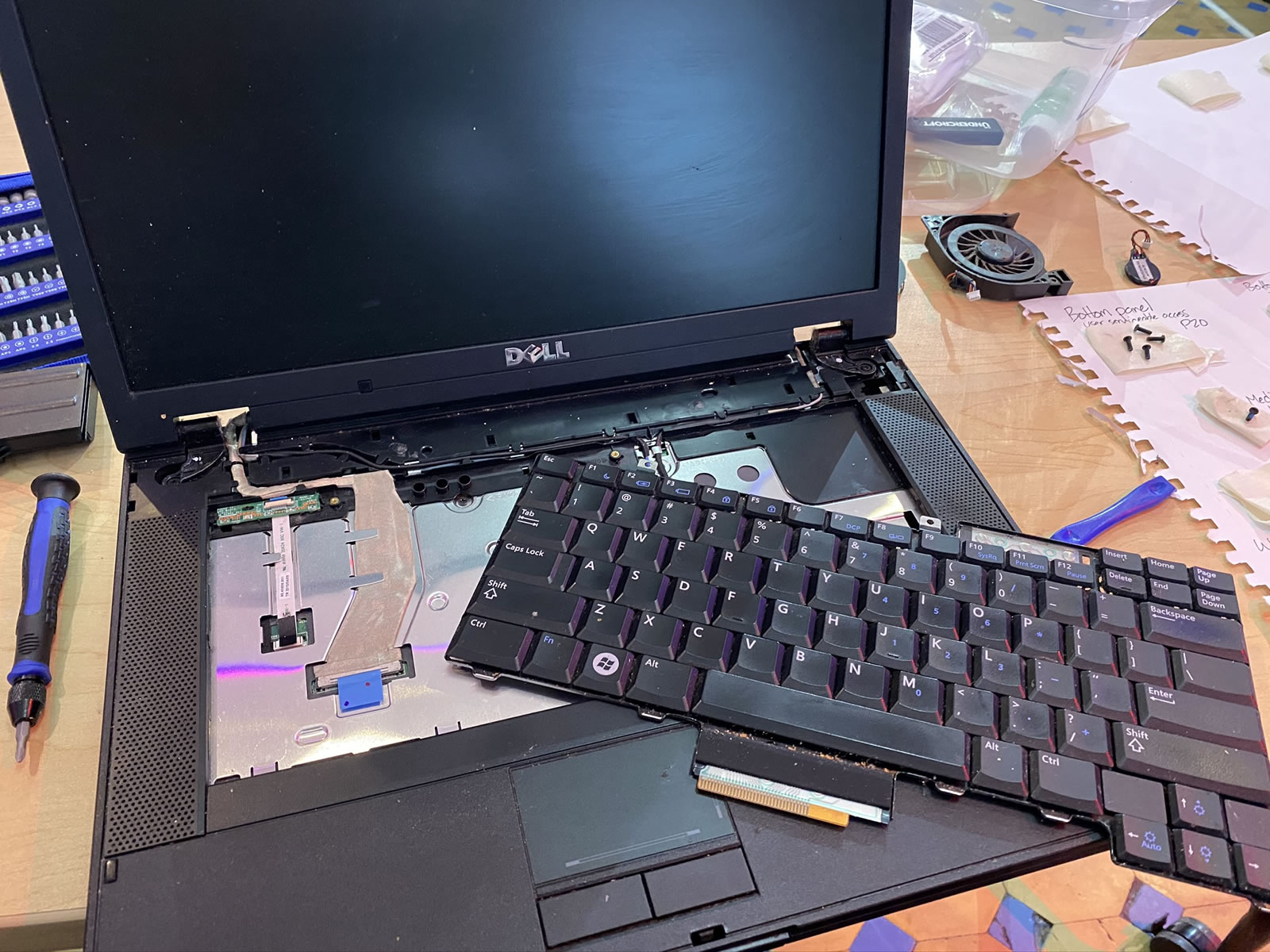

It was also pretty easy to remove the keyboard…

…and once that was done, detaching the screen was a simple process.

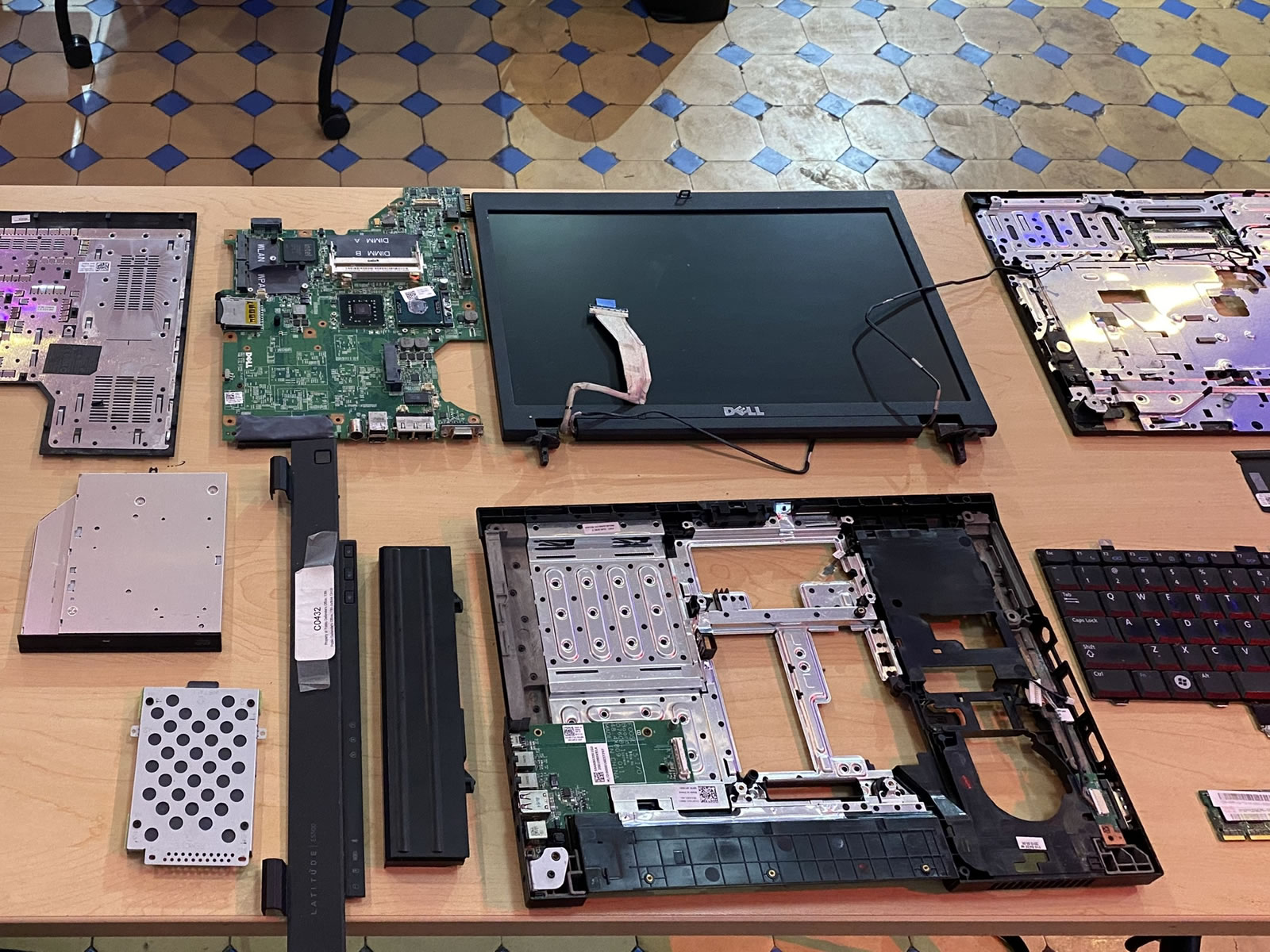

With the disassembly complete, I laid out and labeled the parts that I’d extracted:

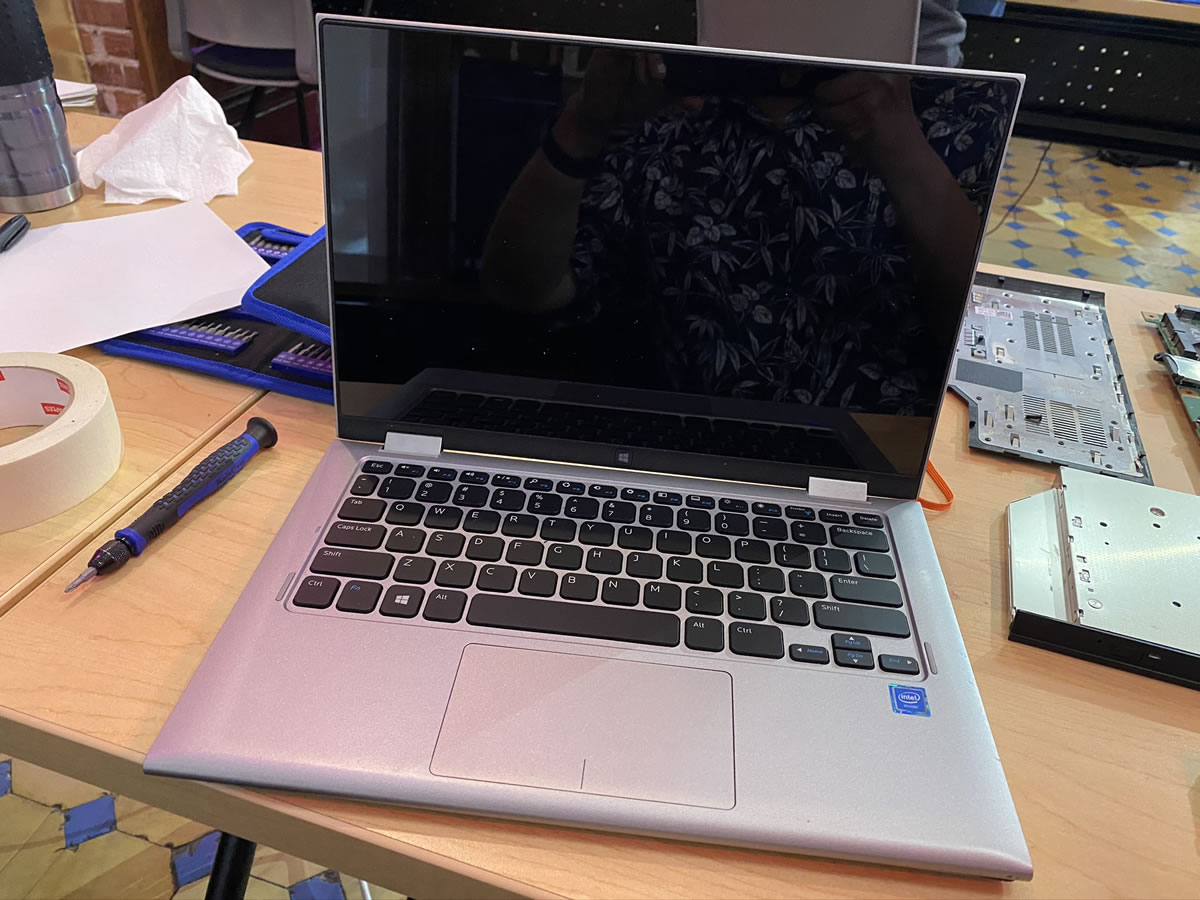

“All right, next challenge,” said Tremere, our instructor for the Hardware 101 portion of the course. “Disassemble, then reassemble the small one…”

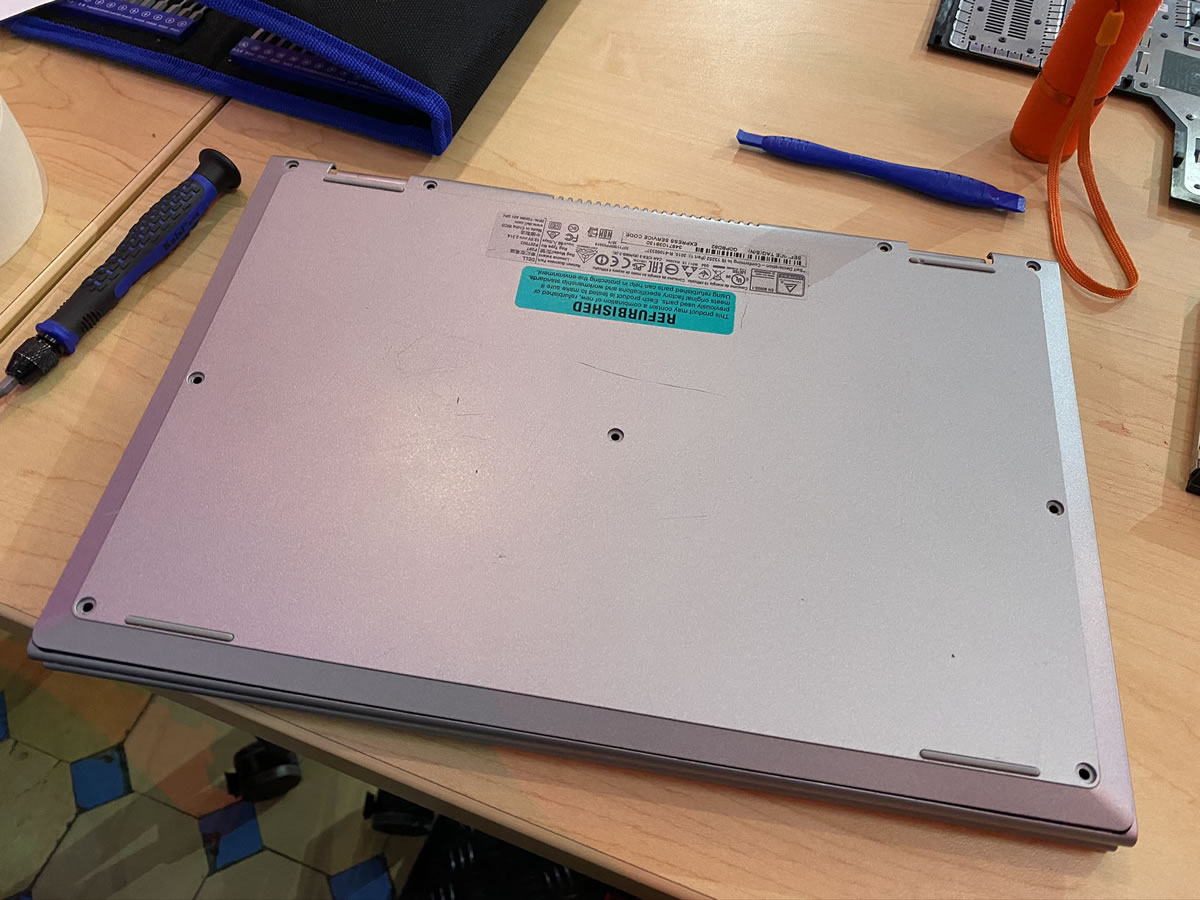

I flipped it over, pleasantly surprised to see standard Phillips screws that were easy to access:

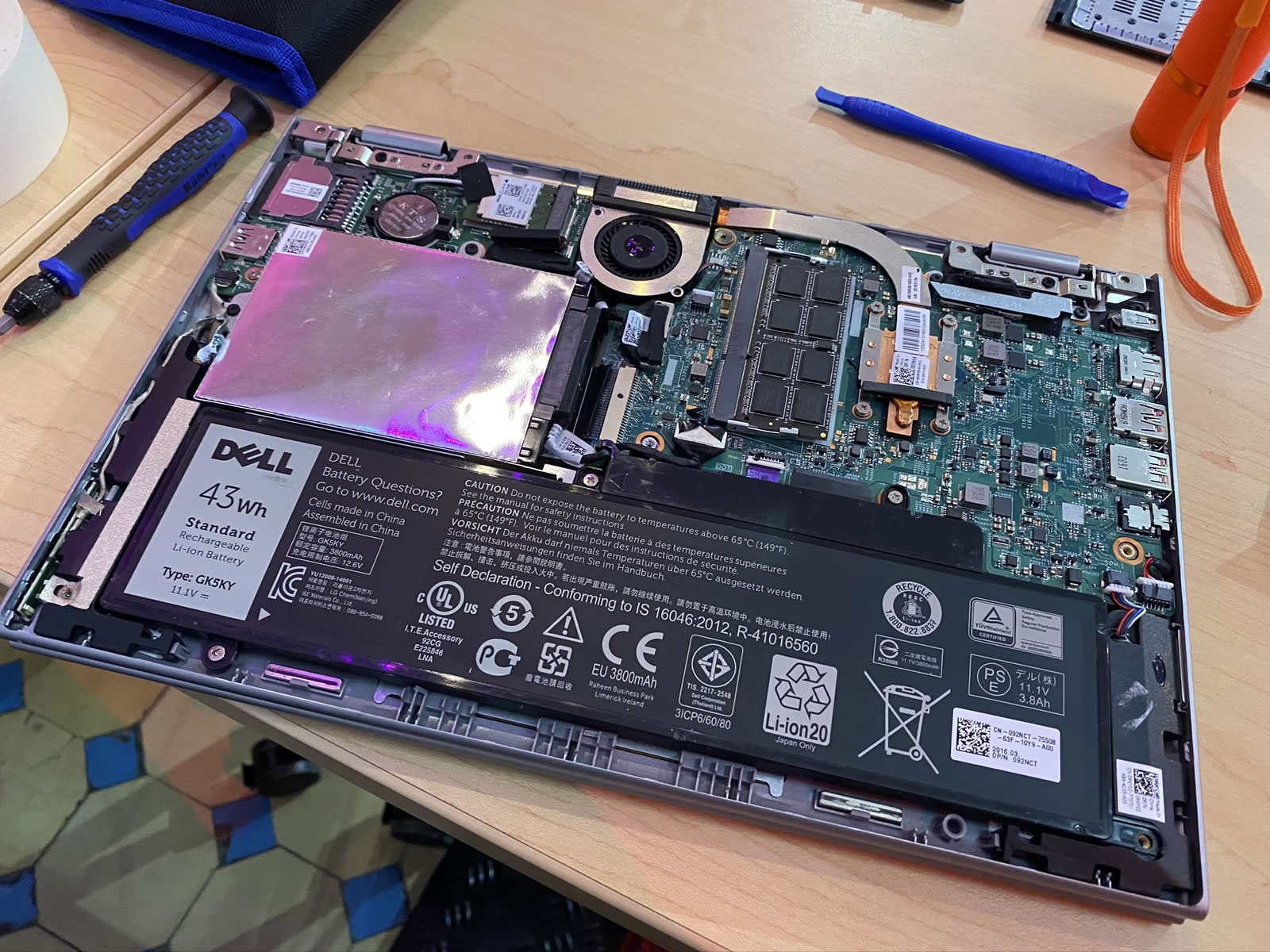

At this size, a laptop’s battery-to-actual-computer ratio jumps significantly:

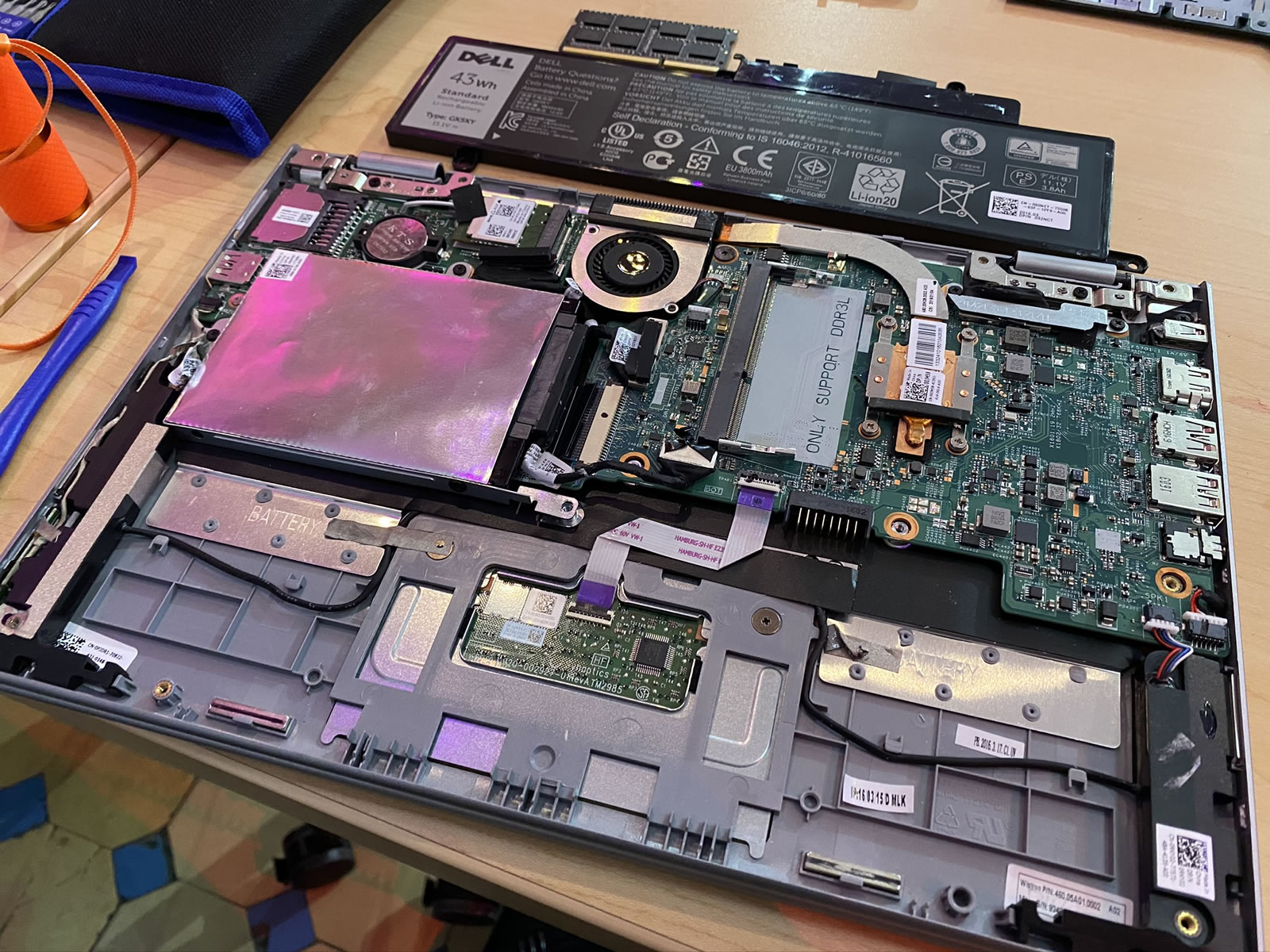

This machine was still intended to be somewhat user-serviceable, so the battery and RAM were still easy to remove:

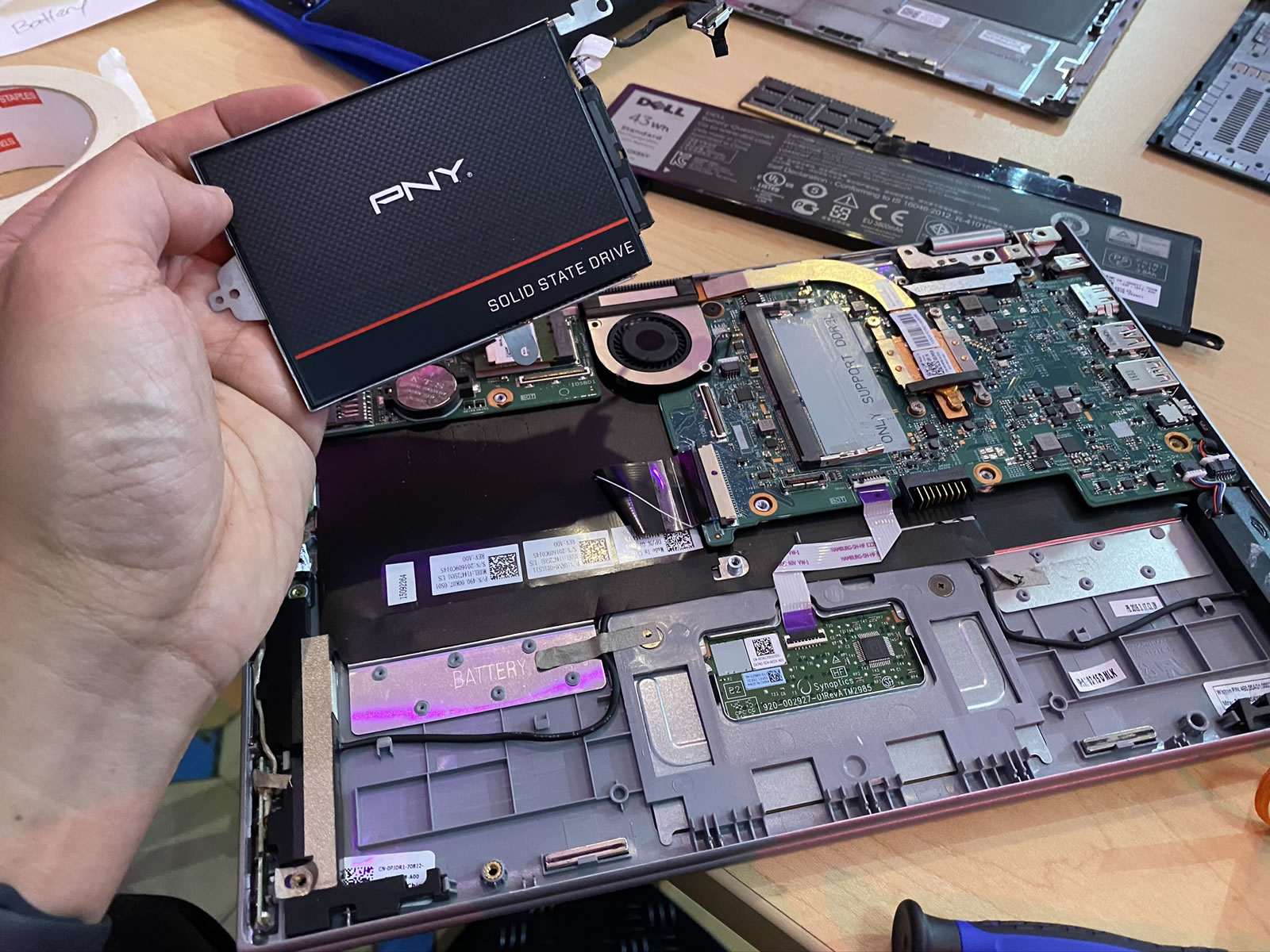

The drive didn’t take much effort to liberate, either:

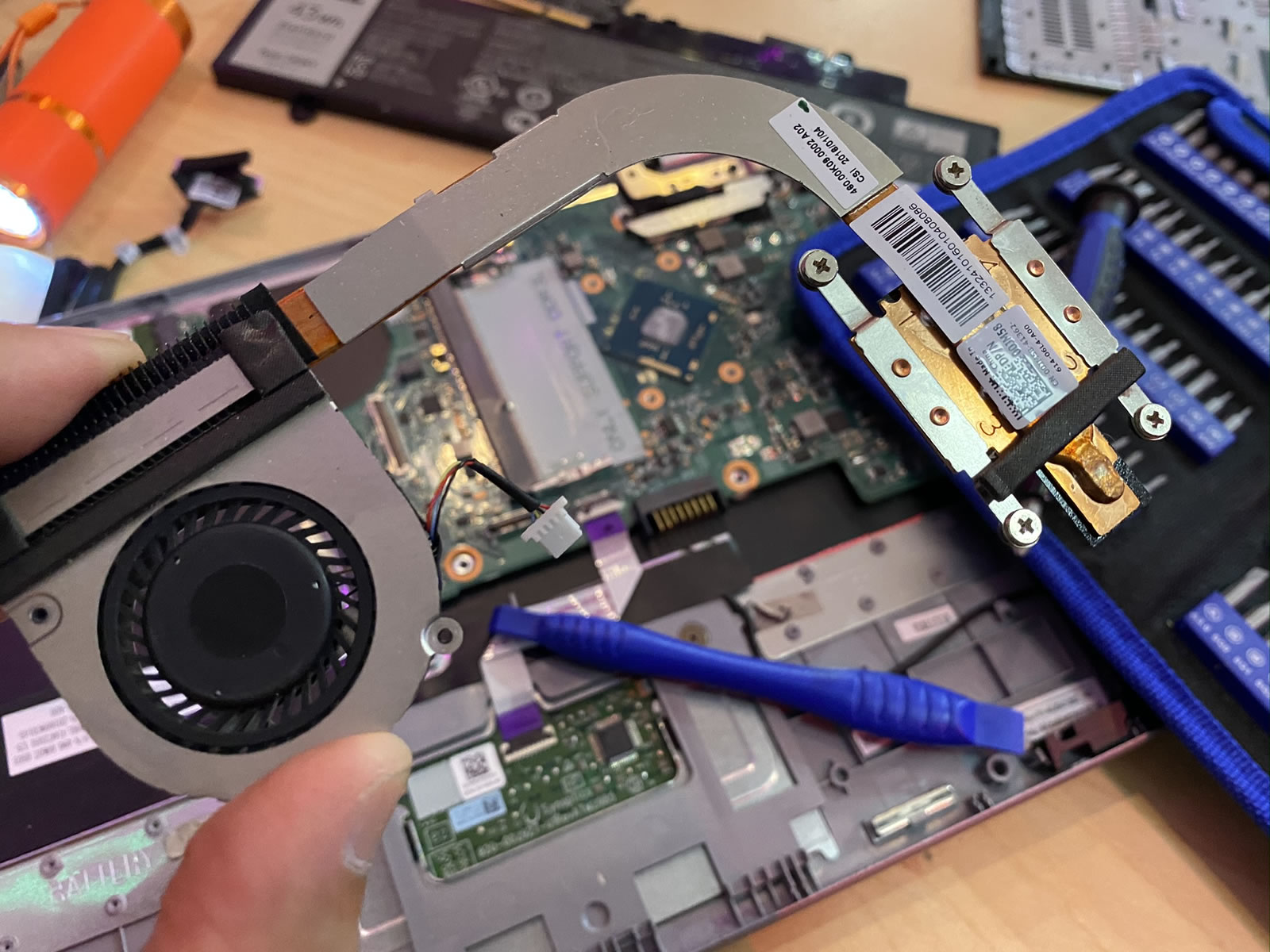

The fan/heat sink combo didn’t put up much of a fight:

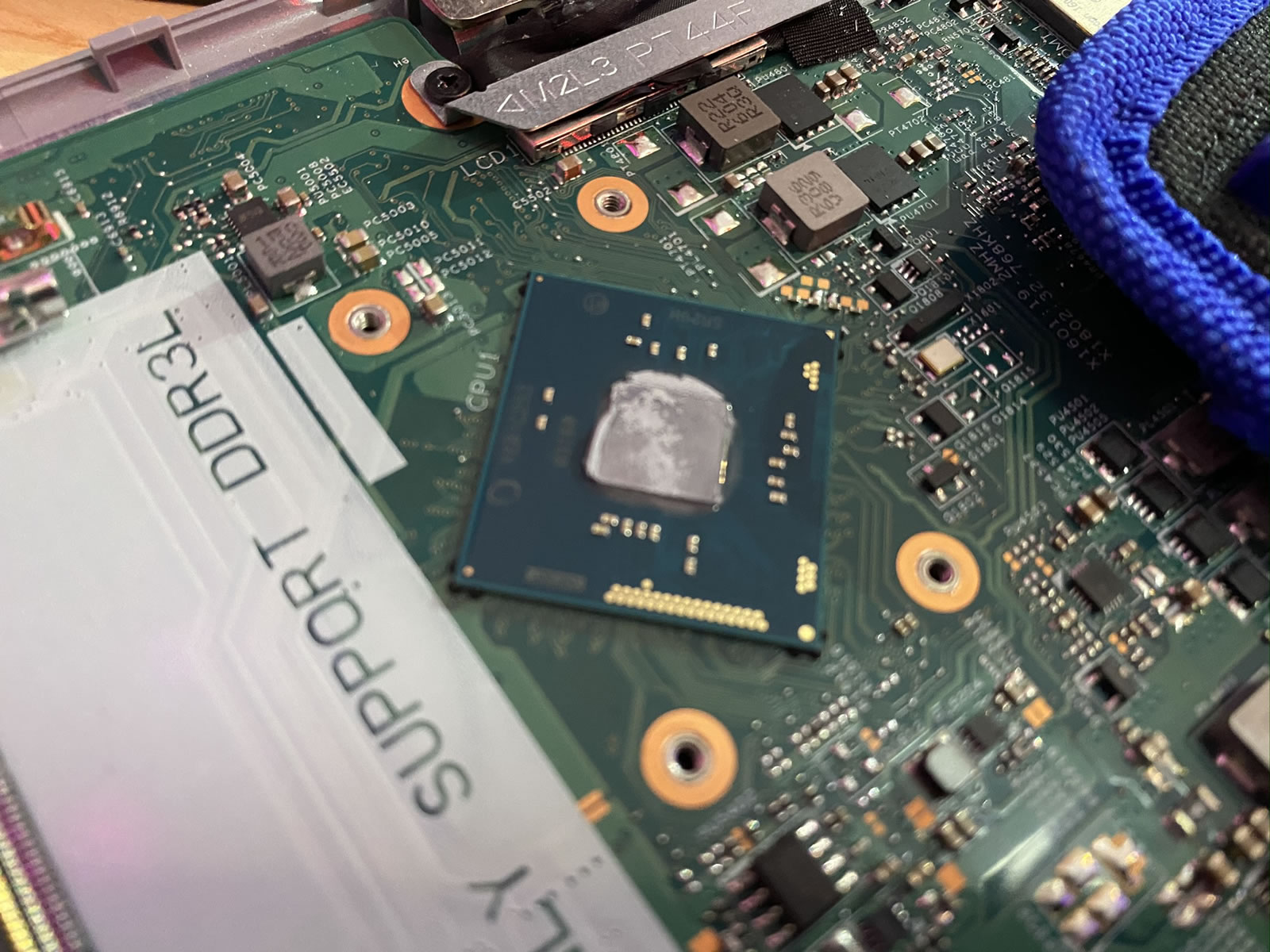

This is a machine made specifically for writing TPS reports and not much else, judging from its CPU. Still, I’m sure it could still do a serviceable job running a modern lightweight Linux — assuming it survives my disassembly and subsequent attempt to put it back together again.

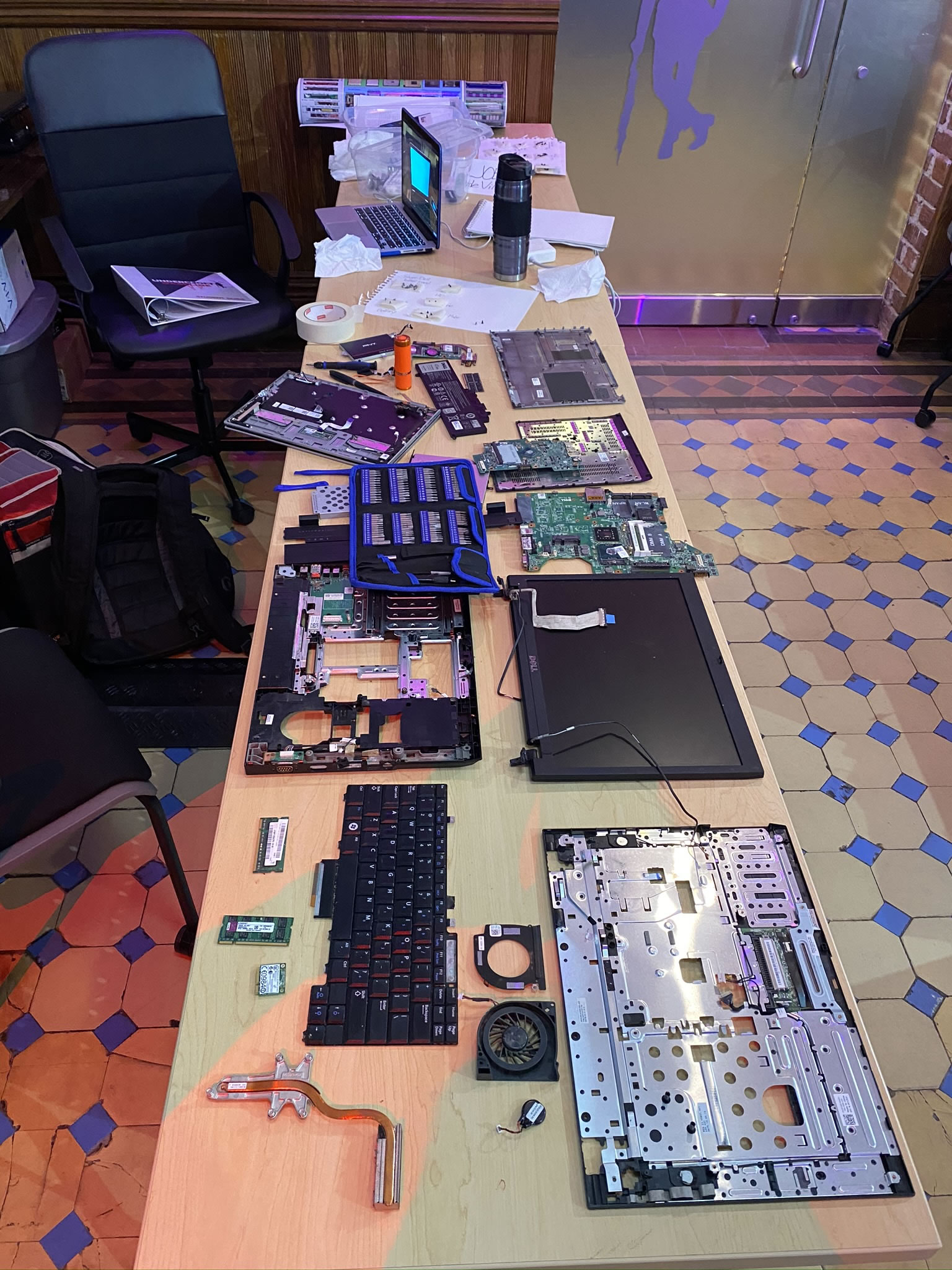

Here are both patients, spread out across the operating table…

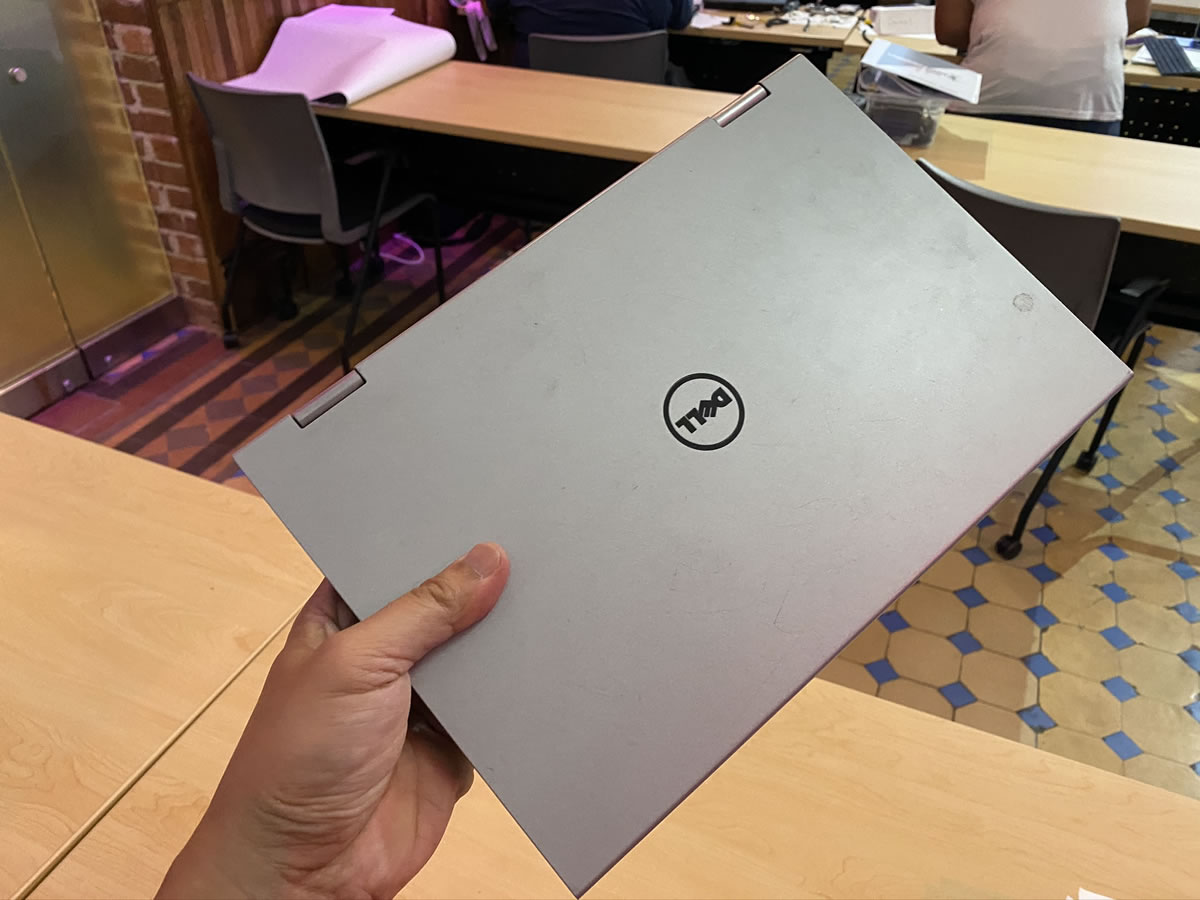

Re-assembly took a little longer, and I didn’t bother with photos of that process. I did manage to get it back together again, and with no extra parts!

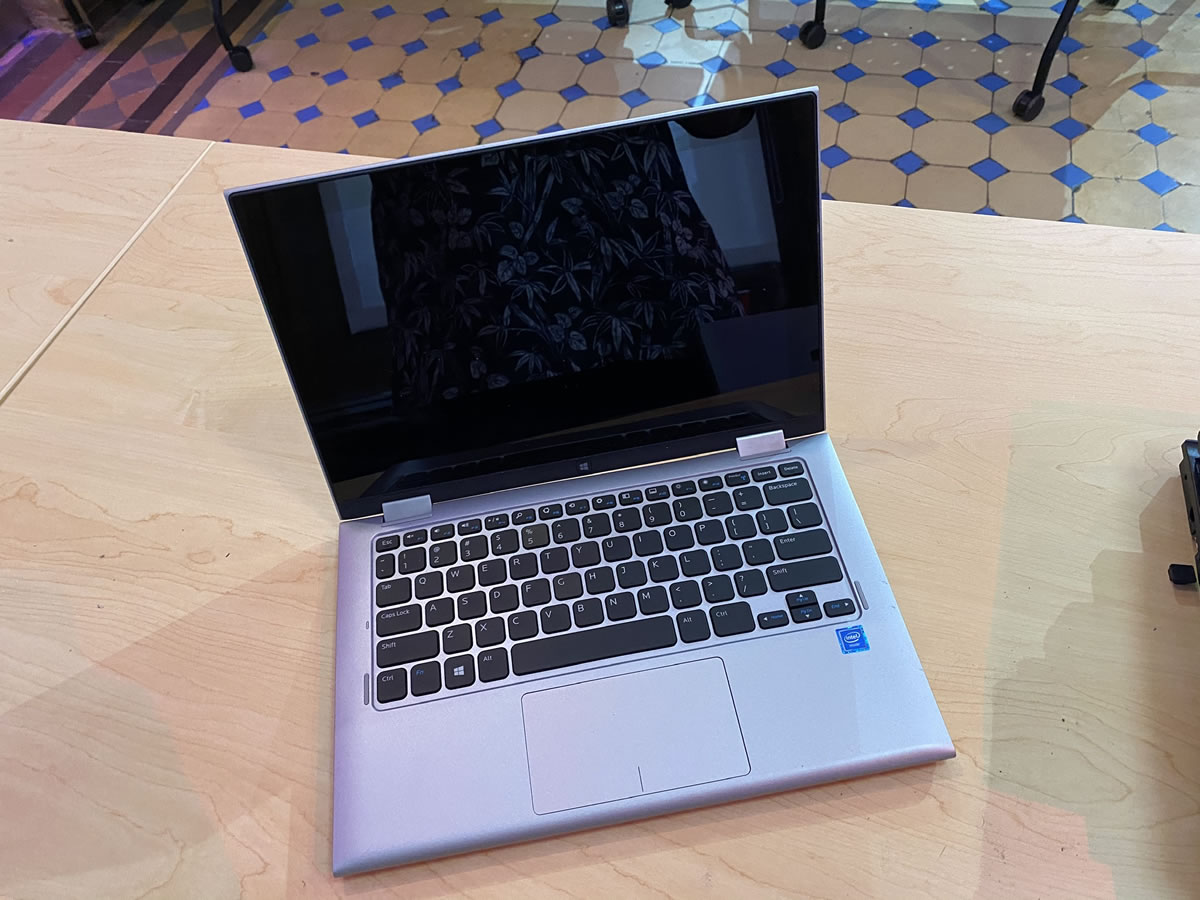

I even the screen reattached! Later, I found a power adapter, and the machine managed start and get up to the BIOS screen, although the screen looked a little dim. Since I’m not trying out for a CompTIA hardware certificate, I’ll simply declare the procedure a success and not get too bogged down with fussy minutae such as “functioning” and “usable”.

Categories
Programming What I’m Up To

Computer Coach’s “Intro to Python Coding” course (taught by Yours Truly) starts tonight!

The online Intro to Python Coding course that I’m teaching on behalf of Tampa Bay’s own Computer Coach Training Center starts tonight at 6:00 p.m.. For the next five weeks, on Monday and Wednesday evenings from 6:00 to 10:00, I’ll be leading a class of Python learners through “code along with me” exercises in the Python programming language.

Photo: Joey deVilla points at a projected screen of code with co-presented Angela Don.
Dropping code science at BarCamp.

The format of the course will be pretty much the same as the one I use at Tampa iOS Meetup, where I lead the group through a “code along with me” exercise. I project what’s on my computer on the big screen, and everyone follows along, entering the code as I explain what’s happening.

Since Python has a REPL (Read-Evaluate-Print Loop), I can also have the class go through some exercises and try little coding challenges. It will be a “learn by doing” kind of class.

The main textbooks for the course (which will be provided to students) are Python Crash Course, 2nd Edition…

Book cover: “Python Crash Course, 2nd edition: A Hands-On, Project-Based Introduction to Programming”

…and Automate the Boring Stuff with Python, 2nd edition (which is free to read online):

Book cover: “Automate the Boring Stuff with Python, 2nd edition: Practical Programming for Total Beginners”In order to minimize confusion, we’ll all use the same tools in the course, namely the Anaconda Individual Edition distribution of Python 3.7 and associated tools…Logo: Anaconda…and Visual Studio Code:

Logo: Visual Studio CodeBoth are available free of charge, and run on macOS, Windows, and Linux.

It’ll be fun! Watch this space; I’ll post some snippets from the course as it progresses.

Interested in signing up? Visit Computer Coach’s site and speak to them. Don’t dawdle — it starts tonight!

Categories
Current Events Programming What I’m Up To

I’m teaching an online Python programming course!

Photo: Man’s hand on Mac laptop, with Python book on the side. Caption: “Intro to Python course / Starts this Monday!”

Graohic: Computer Coach Training Center logoI’ll be teaching a live online course on Python programming on behalf of Computer Coach Training Center starting Monday. Here are the details:

  • What: Intro to Python Coding course
  • When: Monday and Wednesday evenings, 6:00 – 10:00 p.m., starting Monday, July 13 and ending Wednesday, August 12 (6 weeks, twice a week)
  • Where: Online.
  • How much: $900 — and Computer Coach has grants that can cover the cost if you’re unemployed and based in the Tampa Bay area (contact them to see if you qualify)
  • What you’ll need:
    • A computer that was made sometime in the last ten years. My main computer is a 2014-era MacBook Pro, but I’ll be doing demonstrations on a 2012-era Lenovo ThinkPad running Linux Mint, a 2009-era Compaq laptop running Peppermint Linux, and a $35 Raspberry Pi.
    • An internet connection. This is an online course, after all.

To register for this course, visit this page and tap the Attend Online button. Someone from Computer Coach will contact you.

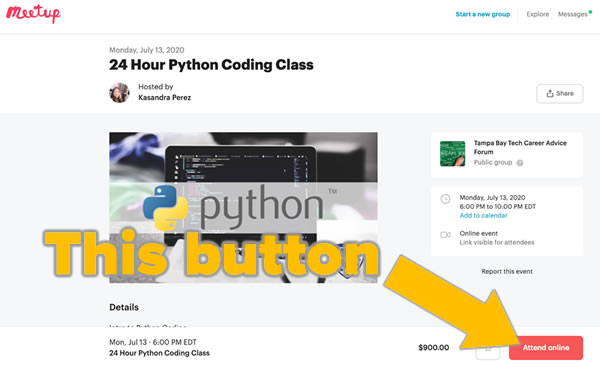

Screenshot: The Meetup page for the Python course, with the “Attend online” button highlighted.
